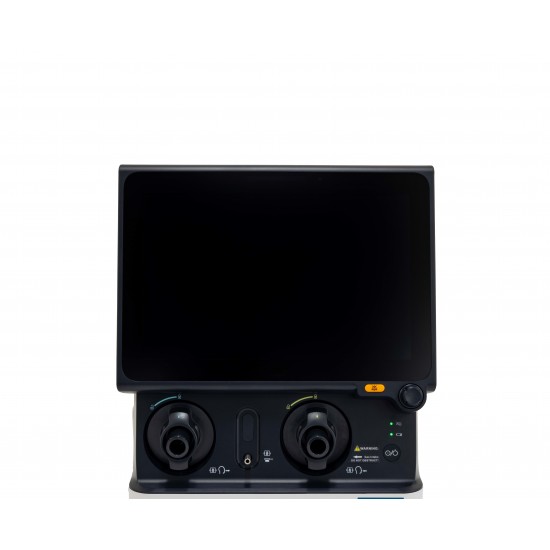

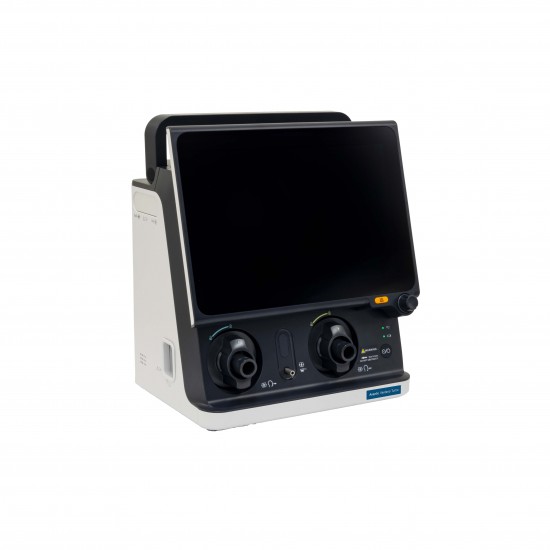

Icu Ventilator

A Turbine-Driven ICU Ventilator

The Avante Verdana Turbo is a lightweight and portable ICU ventilator. This ventilator is turbine driven and does not need compressed air to function. The ventilation modes available provide critical and subcritical respiratory therapy. With an intuitive parameter and waveform display, the Verdana Turbo is easy to use without the need for complicated training.

The Avante Verdana Turbo ICU ventilator is available through Avante Health Solutions. Contact an Avante representative today for more information.

Features

·         Simple and intuitive user interface.

·         Can be used on adult, pediatric, and infant patients.

·         Trolley is easy to assemble and disassemble.

·         Long-life lithium battery.

·         Smart synchronized breathing.

·         Wide range of ventilation modes.

·         Ultra-silent turbine.

·         Instructions for weaning.

·         Double valves and turbines ensure efficient ventilator operation.

·         Turbine provides high-flow ventilation of up to 210 L/minute.

·         Turbine life of up to 20,000 hours.

·         Valves are easy to disassemble for thorough cleaning.

·         Dual valves are able to withstand temperature of 134°C/273°F and high-pressure sterilization.

·         Screen can be angled for a more comfortable viewing experience.

·         Only two steps needed to adjust ventilation parameters.

SPECIFICATIONS

Weight

·         Device weight - 10.4 kg (23 lbs.)

·         Minimum patient weight - 3 kg (6.6 lbs.)

Ventilation Modes – Invasive

·         V-A/C

·         P-A/C

·         V-SIMV

·         P-SIMV

·         CPAP/PSV

Ventilation Modes – Non-Invasive

·         P-A/C

·         CPAP/PSV

·         P-SIMV

·         High flow oxygen therapy

Assisted Ventilation

·         Manual breathing

·         Nebulizer

·         Exhalation – Hold

·         Inhalation – Hold

·         Oxygen enrichment (+O2)

·         Sputum suction

Smart Ventilation

·         Compliance compensation

·         IntelliSynTec

·         Leakage compensation

·         Apnea ventilation mode

Monitoring Functions

·         P-T waveform

·         F-T waveform

·         V-T waveform

·         Waveform chart

·         P-V loop

·         F-V loop

·         F-P loop
